  |→　Road building machinery → Asphalt Concrete Paver → Medium-size Multi-Function Asphalt Concrete Paver

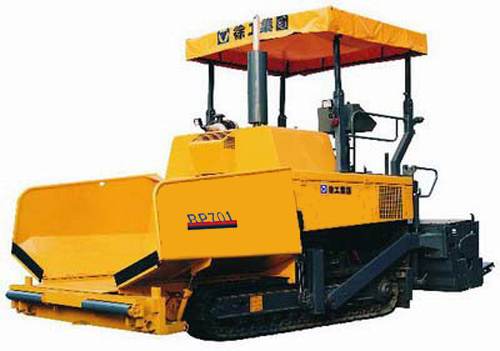

RP601、RP701
Requset a Quote



Brief Introduction
* RP601、RP701 paver is widely used for paving road base and surface, especially suitable for paving road base and surface, especially suitable for paving asphalt concrete.
* It could be operated easily and convenient for having the high automation with fully hydraulic driven and electronic control, automatic centralized lubricating system, electric-heating system, infinitely hydraulic adjusted working width. The main switch and automatic leveling system of the control system ensure ideal smoothness and working quality.


MAIN TECHNICAL PARAMETER ltem

Unit

Parameter

Basic Working Width

m

2.5

Max working Width

m

6.0/7.0

Max Paving Thickness

mm

300

Paving Speed

m/min

0～15

Traveling Speed

km/h

0～4.2

Theoretical Productivity

t/h

400

Hopper Capacity

t

13

Gradient Ability

%

20

Smoothness

mm/3m

3

Slope Leveling Tolerance

%

±0.02

Engine Type

　

BF4M1013C（Deutz）

Rated Output/Speed

kw/rpm

112/2300

Tank Capacity

L

180

Generator Power

kw

21

Weight

t

16.5～22.0

Overall Dimension

mm

6230×2500×3815


Note: All specifications on our website are subject to technical modifications without notice.
