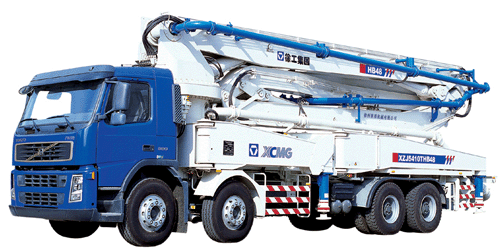

HB48 Truck-Mounted Concrete Pump
Advanced technology performance, reliable quality and high safety are available in the unit. max.138m3/h theoretical output, max.13MPa delivery pressure, 48m reach height, 42.75m operating radius and 34m reach depth can be realized in the unit. 5-section “RZ” - folding placing boom is suitable for applications in confined sites. Sections of the placing boom can be operated not only individually but also simultaneously, so nearly eliminate all construction blind areas. Main parts are 4 chassis made by VOLVO Company Sweden,′world brand products such as FM12/8 placing boom, turntable, sub frame and outrigger assy. imported from Italy, electro-hydraulic proportional valve from HAWE Company Germany, hydraulic pump unit and control valves from REXROTH Company Germany, and transfer gearbox from STIEBEL Company Germany. Ergonomic design is emphasized. Safety devices are well-equipped. And it is not only good looking, but also convenient to operate. Complies with national compulsory standard and gains “3C” certification.

HB 48 Truck-Mounted Concrete Pump Technical Data
1、Technical Data in Travel Configuration

Item			Parameter
Outline dimensions (Length′ Width ′Height)mm			12430×2500×3995
Fuel type			Diesel
Engine emission standard			Euro III
Displacement/Powerml/kW			12100/279
Steering type			Steering wheel
No. of axle			4
Wheel basemm			1793+4407+1370
No. of spring leaf (front/rear)			2+3/9
Tire			12.00R20
Track (front/rear) mm			2029/1872
No. of tire (exclude spare tire)			12
Total vehiclecurb weight		Total weightkg	40870
		Front axle loadkg	15870
		Mid, rear axle loadkg	25000
Total weight		Total weightkg	41000
		Front axle loadkg	16000
		Mid, rear axle loadkg	25000
Crew in cab			2
Approach angle/Departure angle			21°/10°
Front overhang /Rear overhangmm			1360/3500
Max. speedkm/h			94
Min. ground clearancemm			270
Max. grade-ability			38%
Fuel consumption of 100kmL/100km			40
Chassis	Model		FM12
	Grade		Ⅱ
	Manufacturer		VOLVO
Engine	Model		D12
	Manufacturer		VOLVO
