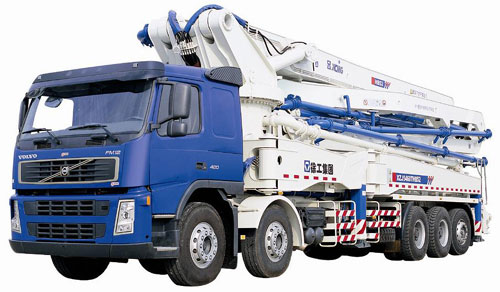

HB52 Truck-Mounted Concrete Pump Technical Data
1、Technical Data in Travel Configuration

No.	Item	Unit	Parameter
1	Max. speed	km	90
2	Min. turning diameter	m	27.4
3	Brake distance	m	≤10
4	Approach angle	°	18
5	Departure angle	°	12
6	Chassis model		VOLVO FM440
7	Front track	mm	2028
8	Rear track	mm	1872
9	Total vehicle weight	kg	47000
10	Engine model		D13
11	Max. Engine power	kW/rpm	324/1400～1800
14	Max. Engine torque	N.m/rpm	2200/1050～1400
15	Max. grade-ability	%	38
16	Fuel consumption limit	L/100km	50
17	Outlinedimensions (Length′ Width ′Height)	mm	14665×2500×3990

2、Technical Data for Pumping Operation

No.	Item	Unit	Parameter
1	Theoretical output	m3/h	138/90
2	Max. delivery pressure	MPa	8.7/13
3	Reach height	m	51.5
4	Reach depth	m	40
5	Front outrigger transverse span	mm	11020
6	Rear outrigger transverse span	mm	10730
7	Outrigger longitudinal span	mm	10430
8	Max. aggregate diameter	mm	40
9	Water tanker capacity	l	650
10	Placing boom slewing range	°	364
