  |→　Earthmoving Machinery → Loaders → Wheel loader

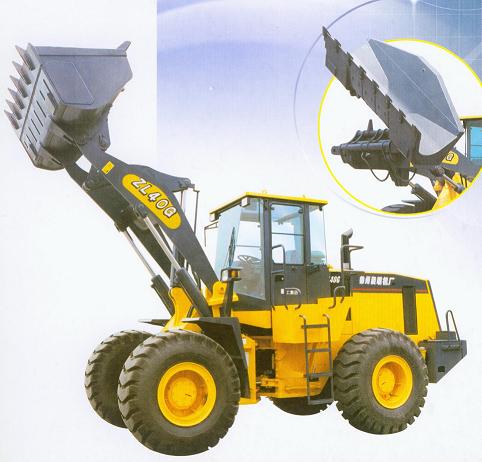

ZL40G
Requset a Quote



ZL40G

Item

Specification

Unit

Rated Load

4000

kg

Raising Time

≤4.7

s

Total Cycling Time

≤9.3

s

Max. Drawing Force

120

kN

Articulation Angle

35

°

Min. Turn Radius

5950

mm

Climb Ability

28

°

Wheel Base

3100

mm

Tread

2060

mm

Travel Speed

1st (F/R)

11/15

Km/h

2nd (F)

35

Km/h

Engine Model

6135K-13C D6114ZG38A 6135K-13B



Rated Power/ Rated Speed

128/2000 125/2100 128/2000

kw/ r/min

Tyres

20.5-25



Bucket Specification

Bucket Capacity

1.8 2.0 2.2 2.4

m3

Dumping Clearance

2900

mm

Dumping Reach

1040

mm

Dimension (L*W*H)

7739*2750*3425

mm

Operation Weight

15

t

Clamp Specification

Min. Clamp Diameter

￠560*1660

mm

Dumping Clearance

2725

mm

Dumping Reach

1358

mm

Max. Breakout Force

140

kN

Dimension (L*W*H)

7945*2750*3425

mm

Operation Weight

15

t

Side Dump Specification

Bucket Capacity

1.7

m3

Dumping Angle

45

°

Side Dumping Angle

45

°

Dumping Clearance

2870

mm

Dumping Reach

1190

mm

Side Dumping Clearance

3580

mm

Dimension (L*W*H)

7860*2760*3425

mm

Operation Weight

15.5

t


Note: All specifications on our website are subject to technical modifications without notice.
