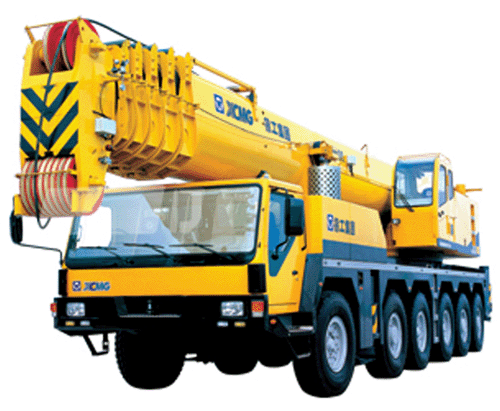

QAY All Terrain Crane is a new style of All Terrain Crane designed basic on the successful design of QAY130, QAY160 and Qay200 ; it was after the extensive Market Investigation and technical proof, also based on the market realities. The products inherited the successful experiences of other All Terrain Crane, it adopted the new material, new Craftsmanship, and the most advanced steel structure design and computer technology in the present world. The main crucial of hydraulic component and load bearing material adopted internationalization mating, raised the product’s performance and reliability effectively. With the use of all terrain crane chassis by hydro-pneumatic suspension, electro-hydraulic pilot proportional control, critical load control quantity hydraulic system. U-shaped boom technology, it raised the performance and products levels. Design novel of complete machine, entire allocation is compactness reasonable, high performance of driving and lifting.
QAY240 All Terrain Crane Main Specifications
1、Technical Data in Travel State
Classificatory |
Item |
Unit |
Parameter |
Outline dimension |
Overall length |
mm |
15918 |
Overall width |
mm |
3080 |
Overall height |
mm |
4000 |
Mass |
Total mass in travel state |
kg |
72000 |
Axle load |
Axle 1 |
kg |
12000 |
Axle 2 |
Kg |
12000 |
Axle 3 |
Kg |
12000 |
Axle 4 |
Kg |
12000 |
Axle 5 |
Kg |
12000 |
Power |
Engine rated output |
kW/(r/min) |
420/1800 |
Engine rated torque |
N.m/(r/min) |
2700/1080 |
Engine rated speed |
r/min |
2000 |
Travel
performance |
Travel speed |
Max. travel speed |
km/h |
71 |
Turning radius |
Min. turning diameter |
m |
24 |
Min. ground clearance |
mm |
280 |
Approach angle |
° |
25 |
Departure angle |
° |
17.8 |
Braking distance (at 30km/h with full load) |
m |
≤10 |
Max. grade-ability |
% |
48 |
Fuel consumption for 100km |
l |
90 |
2、Technical Data for Lifting Operation
| Classificatory |
Item |
Unit |
Parameter |
Main performance |
Max. rated lifting capacity |
t |
240 |
Min. rated radius |
m |
3 |
Turning radius at turntable tail |
mm |
4800 |
Max. load moment |
Base boom |
kN.m |
7797 |
Fully extended boom |
kN.m |
2940 |
Outrigger span
(fully extended) |
Longitudinal |
m |
9.625 |
Lateral |
m |
8.7 |
Hoist height |
Base boom |
m |
12.6 |
Fully extended boom |
m |
65.6 |
Fully extended boom + Jib |
m |
85.7 |
Boom length |
Base boom |
m |
13.2 |
Fully extended boom |
m |
67 |
Fully extended boom + Jib |
m |
87 |
Working speed |
Boom elevating time |
Boom rising |
s |
65 |
Boom telescoping time |
Full extension/retraction |
s |
650 |
Max. swing speed |
r/min |
1.6 |
Outrigger telescoping time |
Outrigger beam |
Synchronous extension |
s |
50 |
Synchronous retraction |
s |
40 |
Outrigger
jack |
Synchronous extension |
s |
50 |
Synchronous retraction |
s |
45 |
Hoist speed (single rope at 4th layer) |
Main winch |
m/min |
115 |
Auxiliary winch |
m/min |
118 |
