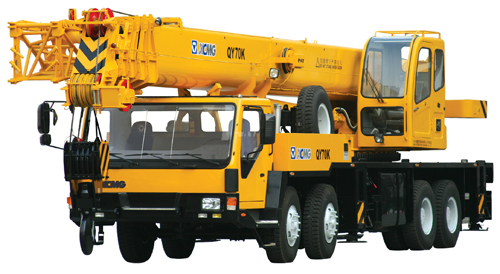

QY70K Truck Crane
The features of QY70K:
1、The concept of making “safe, environmental, reliable and advanced” products is implemented during designing and manufacturing processes.
2、Gross vehicle weight is reduced and reliability is improved greatly due to adoption of components made by established manufacturers worldwide, as well as first class steel plates and key hydraulic parts.
3、Excellent lifting performance and wide working areas due to variety of counterweight combination, outrigger positions (fully extended and half extended), single top. Its main lifting performance ranks first in domestic similar products.
4、Electro-hydraulic proportional control system and hydraulic system equipped with advanced electro hydraulic proportional valves, slewing buffer valves and electric variable motor contribute to improvements on smooth operation and inching control.
5、Oval cross-section boom has features of strong anti-torsion and reasonable transfer of tension. New materials such as WELDOX 960 super-high tension steel, glass fiber reinforce plastic and aluminum alloy not only meets high performance requirements, but also reduces gross vehicle weight.
6、High working efficiency is achieved by adoption of double variable main hoist system contributing to low speed with heavy load, high speed with light load and energy saving, as well as high elevating and telescoping speed.
7、Spacious and bright cabs for driver and operator, equipped with heater and air conditioner, comfortable for operation.
8、Powerful environmental chassis engine contributes to excellent maneuverability.
Main Technical Specifications
Technical Data for Lifting Operation
Classificatory |
Item |
Unit |
Parameter |
Outline dimension |
Overall length |
mm |
13500 |
Overall width |
mm |
2800 |
Overall height |
mm |
3510 |
Wheel base |
Axle 1, Axle 2 |
mm |
1520 |
Axle 2, Axle 3 |
mm |
3965 |
Axle 3, Axle 4 |
mm |
1350 |
Mass |
Total mass in travel state |
kg |
41000 |
Axle load |
Axle 1, Axle 2 |
kg |
15000 |
Axle 3, Axle 4 |
kg |
26000 |
Travel performance |
Travel speed |
Max. travel speed |
km/h |
75 |
Turning diameter |
Min. turning diameter |
m |
24 |
Min. turning diameter at boom tip |
m |
29.0 |
Min. ground clearance |
mm |
270 |
Approach angle |
(°) |
16.5 |
Departure angle |
(°) |
11.3 |
Braking distance (at speed of 30km/h) |
m |
≤10 |
Max. grade-ability |
％ |
40 |
Fuel consumption for 100km |
L |
42 |
Power |
Engine rated output |
kW/(r/min.) |
266/2208 |
Engine rated torque |
N.m/(r/min.) |
1460/1400 |
Engine rated speed |
rpm. |
2200 |
Main Technical Data for Lifting Operation
Classificatory |
Item |
Unit |
Parameter |
Lifting performance |
Max. total rated lifting capacity |
t |
70 |
Min. rated working radius |
m |
3 |
Turning radius at turntable tail |
m |
3550 |
Max. load moment |
Base boom |
kN.m |
2303 |
Fully extended boom |
kN.m |
1043 |
Fully extended boom + Jib |
kN.m |
492.8 |
Outrigger span |
Longitudinal |
m |
5.75 |
Lateral |
m |
6.9 |
Lifting height |
Base boom |
m |
11.2 |
Fully extended boom |
m |
42 |
Fully extended boom + Jib |
m |
58 |
Working speed |
Boom elevating time |
Boom raising |
S |
75 |
Boom telescoping time |
Boom full extension/retracting |
S |
150/100 |
Max. swing speed |
r/min |
2.0 |
Outrigger telescoping time |
outrigger beam
extending/retracting synchronously |
S |
30/20 |
Outrigger jack
extending/retracting synchronously |
S |
35/12 |
Hoist speed
(single line) |
Main winch |
Full load |
m/min |
75 |
No load |
m/min |
130 |
Aux. winch |
Full load |
m/min |
98 |
No load |
m/min |
108 |
