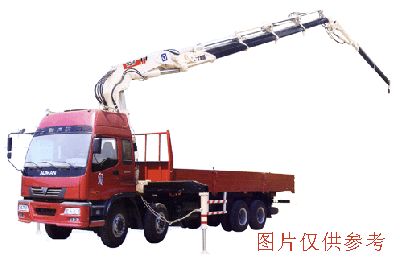

|→　Lifting Machinery → Truck Mounted Crane → Kunckle boom crane

SQ16ZK4Q

Requset a Quote

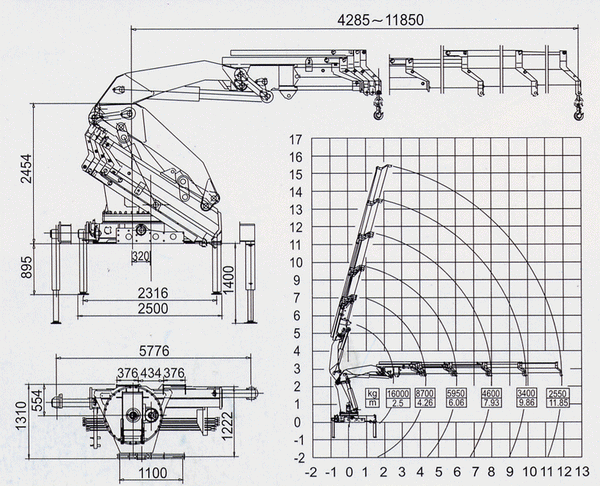

MODEL		SQ16ZK4Q
Max.Lifting Capacity	KG	16000
Max.Lifting Moment	T.M	40
Recommended Power	KW	37
Max.Oil Flow Of Hydraulic System	L/MIN	63
Rated Pressure Of Hydraulic System	MPA	30
Oil Tank Capacity	L	250
Rotation Angle		ALL ROTATION
Crane Weight	KG	5600
Installation Space	MM	1500

Note: All specifications on our website are subject to technical modifications without notice.
