|→ Earthmoving Machinery → Loaders → Wheel loader |
|

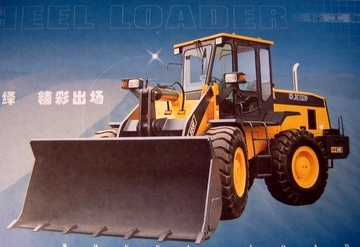

On the basis of LW320F wheel loader, LW321F wheel loader gets improved in terms of power system, frame assembly, hydraulic system and out-looking shape, by which greatly improving the machine performance in the aspects of machine technical data, reliability, operation comfort, working efficiency and machine maintenance.
LW321F Features Highlights:
·YC6108G is adopted as its power system, with power improved up to 92Kw, which will add more spare power to the machine.
·Radiation system is also improved by enlarging the fan and water tank area, which will better the machine performance.
·The front and rear frame structure have been optimizely designed, so as to improve the frame yielding-proof performance and weld cracking resistance.
·The optimizely-designed large-capacity bucket, the welded bucket teeth and more thick cutting edge improves the wear restistance and cracking-proof performance.
·The optimizely-designed hydraulic system prolongs the service life of hydraulic circuit, and also increases the working pressure up to 15MPa, by which to better the working efficiency.
·The structure strength of working mechanism has been improved, which greatly improves the machine performance in term of unloading height.
·The more rational axle load distribution enlarges the wheel-base of the driving wheel, by which improving the traction and reliability performance of the machine for the machine.
·The integrated machine housing of compound material is featured in nice ventialtion and shock absorbing, which better the radiation performance of the machine. The machine housing could be lockable pneumatically, so it is much easy and safe to carry out any service and maintenance.
·Uniquely-designed operation cab is featured in wide vision, with " Korea Green" glass and nice out-looking shape.
·There are much options for attachments and bucket to apply to different working situation. The machine out-looking shape and its painting are of the integrated style of XCMG wheel loaders, featuring out "XCMG" brand.
Main Technical Specification
| Items |
Technical Data |
Unit |
L/W/H |
6772/2470/3040 |
mm |
Rated loading weight |
3 |
t |
Operating weight |
10 |
t |
Max.traction force |
80 |
kN |
Static side-dumping load |
6500 |
kg |
Min. ground clearance |
400 |
mm |
Steering angle |
35 degree to both Left and Right |
° |
Min.turning radius |
5700 |
|
Speed |
|
Forward I Gear |
0-10 |
km/h |
Forward II Gear |
0-16 |
km/h |
Forward III Gear |
0-21 |
km/h |
Forward IV Gear |
0-35 |
km/h |
Reverse I Gear |
0-14 |
km/h |
Reverse II Gear |
0-25 |
km/h |
Engine model |
YC6108G |
|
Rated power/R.P.M |
92/2300 |
KW/r/min |
Cylinder/Cylinder dia./Stroke |
6/108/125 |
mm |
Bucket capacity |
1.8 |
m3 |
Max. break-out force |
100 |
KN |
Lifting force |
35 |
KN |
Total cycling time |
10.5 |
s |
Unloading height |
2900 |
mm |
Unloading distance |
1000 |
mm |
Optional attachment |
Clamps, side-dumping buckets, extension arms, straw pickers, sliding forks, hoisting hook, grain-pushing shovel,etc. |
|
Tyre specification |
17.5-25 |
|
Inflation pressure |
Front wheels 320－350、Rear wheels 280－300 |
KPa |
|
Note: All specifications on our website are subject to technical modifications without notice. |
|
