Powered by a well-known technology of Shanghai C6121ZG10b diesel engine, showing a compact structure ,excellent performance, electric starting and stopping, flexible operating.
·ZF4WG200 electric-hydraulic control power shift transmission, reliable performance and wonderful traction. KD is helpful to the productivity by decreasing the frequency of shifting.
·Pilot-controlled working device and flow-amplified steering provide smooth control and reliable performance.
·Optimum design of working device, rational arrangement of joint points, breakout force and raising force are more powerful. Pins and sleeve on attachment are sealed with dust-proof and lessen lubrication frequency .Lift limiting and automatic leveling reduce operating strength.
·Integrated hood made of compound material, ease to open and helpful to maintenance.
·Its dual pedals breaking system, low pressure protection, starting protection and emergency brake system ensure your safety.
·The luxury cab designed ergonomically ensures excellent visibility. Optional air-conditioner provides operator with a comfortable job environment.
|

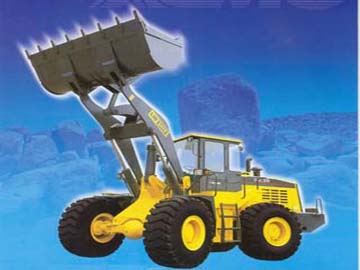

ZL60G Wheel loader main specification |
|
Description |
specification |
unit |
|
Bucket capacity |
3.5 |
m3 |
|
Rated load |
6000 |
kg |
|
Dump clearance |
3100 |
mm |
|
Dump reach |
1250 |
mm |
|
Raising time |
6.5 |
s |
|
Total cycling time |
12 |
s |
|
Max.traction force |
165 |
kN |
|
Max.breakout force |
196 |
kN |
|
Articulation angle |
35 |
° |
|
Min.turning radius |
6495 |
mm |
|
Gradeability |
28 |
° |
|
Wheel base |
3400 |
mm |
|
Track |
2200 |
mm |
|
Speed |
, |
, |
|
1st(F/R) |
6/6 |
km/h |
|
2nd(F/R) |
11/11 |
km/h |
|
3rd(F) |
23/23 |
km/h |
|
4th(F) |
36 |
km/h |
|
Engine |
, |
, |
|
Model |
C6121Z10b(CAT 3306B) |
, |
|
Rated power/rated speed |
174 kw/2200r/min |
, |
|
(LXWXH) |
8593×3050×3435 |
mm |
|
Operating weight |
20.5 |
t |
|
Tyres |
23.5-25-16PR |
, |
