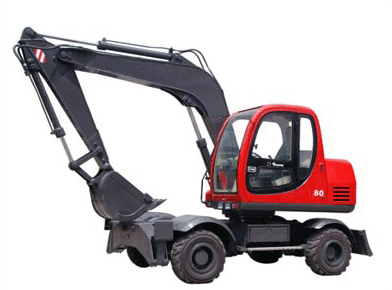

Ahead of the times, the new generation of 608 hydraulic wheel excavator is smart and powerful. Its main components are of world famous brand, and It adopts advanced mature technology in hydraulic manufacture, machining and Mechatronis, which ensures excellent performance, high efficiency and high reliability.
1.The main parts such as the engine, main pump and valve and slew mechanism are of world famous brand.
2.The load-sensing hydraulic system brings high efficiency, low power cost and high reliability. (The principle: the pump can adjust automatically and output the flow adapted to the requirement of load speed, realizing the matching of pump output power with the requirement of load.)
3.With the priority of traveling, it takes hydraulic countershaft drive system, which is independent, making the machine swerve easy and smooth.
4.The cab is ergonomics designed, with heating and air conditioning and good visibility and comfort operation.
5.It serves widely in soil and rock excavation, loading and unloading and leveling off in road construction, airport and port construction, urban construction, municipal construction and pipe laying.
Specifications
| Parameter |
Unit |
Reference value |
Machine weight |
t |
8.2 |
Bucket digging force |
kN |
51.2 |
Arm digging force |
kN |
43.3 |
Slew speed |
r/min |
0-12 |
Grad ability |
% |
46 |
Travel speed |
Km/h |
0-30 |
Pressure |
Mpa |
30 |
Hydraulic system |
|
Load-sensing |
power |
kw |
60 |
Type |
|
B3.3 |
Diesel engine |
|
Cummins |
Standard bucket capacity |
M3 |
0.35 |

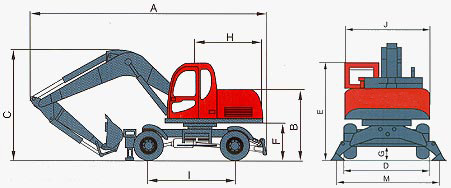

Dimensions
| AOverall length |
6250mm |
BOverall height (to canopy top) |
1976mm |
COverall height (to boom top) |
2600mm |
DOverall width (rear wheel outside) |
2122mm |
EOverall height (to cab top) |
2748mm |
FGround clearance (counterweight) |
1043mm |
GMinimum ground clearance |
263mm |
HTail rotating radius |
1800mm |
IWheelbase |
2400mm |
JUpper body width |
2160mm |
KBlade width |
2120mm |
LBlade height |
450mm |
MThe distance between two supporting legs |
2560mm |
NThe distance between rear axle and supporting leg |
635mm |
Operation scope
| Arm length |
2920mm |
AMaximum digging height |
9228mm |
BMaximum dumping height |
6410mm |
CMaximum digging depth |
6540mm |
DMaximum digging radius |
10000mm |
