615 wheel hydraulic excavator is the latest product from our company. It is an emhanced version of our widely popular W4-60C wheeled hydraulic Excavator Key enhancements include improved hydraulic system
·-Empoys imported hudraulic valves, pump and swing mechanism to ensure high reliability of machine;
-Adopts hydraulic joystick servo control system for easy maneuver-ing during excavation operetion;
-Employs dual pump, dual return hydraulic circnral contronl system for maximum power efficiency and lowers fuel consumption.
Improved extemal aesthetics and ergonomics.
·Newly included shoving blade for clearing operation. The performance of 615 has met international standards and is highly reliable, safe, as well as easy to operate. It is highly suitable for use in airports, ports and urban construction projects, as well as road building and other civil engineering projects.
Specifications
| Parameter |
Unit |
Reference value |
Machine weight |
t |
13.5 |
Bucket digging force |
kN |
93.5 |
Arm digging force |
kN |
69.2 |
Slew speed |
r/min |
10 |
Grad ability |
% |
40 |
Travel speed |
Km/h |
0-20 |
Pressure |
Mpa |
30 |
Hydraulic system |
|
|
power |
kw |
93 |
Type |
|
4BT3.9 |
Diesel engine |
|
Cummins |
Standard bucket capacity |
M3 |
0.6 |
.jpg)

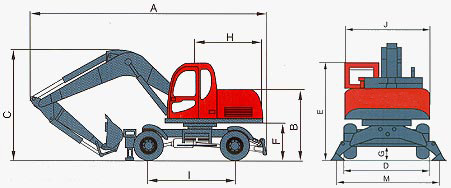

Dimensions
| AOverall length |
8463mm |
BOverall height (to canopy top) |
2500mm |
COverall height (to boom top) |
3567mm |
DOverall width (rear wheel outside) |
2506mm |
EOverall height (to cab top) |
3038mm |
FGround clearance (counterweight) |
1331mm |
GMinimum ground clearance |
369 mm |
HTail rotating radius |
2418mm |
IWheelbase |
2600mm |
JUpper body width |
2500mm |
KBlade width |
2180mm |
LBlade height |
538mm |
.jpg)
Operation scope
| Arm length |
2400mm |
AMaximum digging height |
8475mm |
BMaximum dumping height |
6245mm |
CMaximum digging depth |
4750mm |
DMaximum digging radius |
8761mm |
