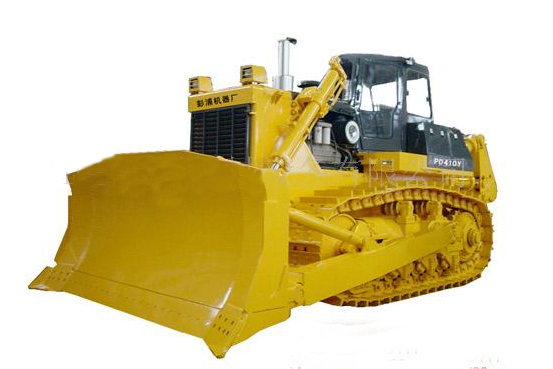

Product Model

PD410Y-1

?Engine

?Model

Cummins ?KTA 19-C525

?Type

Four-stroke, turbocharged vertical, PT pump injection

Flywheel power(kw)

306

Rated speed(r/min)

2000

Number of cylinders-bore ⅹstroke(mm)

6-159ⅹ159

Starting method

Electric starting motor? 24V,9 KW

Battery

24V Optimax

Air cleaner

Dry horizontal type with pre-cleaner

TRANSMISSION SYSTEM

Torque converter

3-element, single stage, single-phase

Transmission

Hand-operated, hydraulic shift, planetary gear, multiple-disc clutch, hydraulic acturated, forced lubrication by gear pump, 3 forward speeds and 3 reverse speeds

Bevel gear

Helical bevel gear, splash lubricated

Steering clutch

Wet, multiple-disc clutch, spring loaded, hand-operated with booster and hydraulic-released

Steering brake

Wet, band brake, operated with hydraulic booster

Final drive

Spur gear, planetary gear driving, splash lubrication

UNDER CARRIAGE

Sprocket

Segmented

Number of track shoes(each side)

7(4 single,3 double)

Track tension

Hydraulic adjusted

·Floating seals are used in all track rollers, carrier rollers, sprocket and front idlers

TRAVEL SPEED(km/h)

1st

2nd

3rd

Forward

3.9

7.5

13.8

Reverse

4.8

9.1

16.8

TRACK

Type

Lubricated track

Track pitch(mm)

260.35

Track width(mm)

610

Number of track shoes(each side)

41

Length of track on ground(mm)

3840

Ground clearance(mm)

600

Ground pressure(Mpa)

≤0.109

Track gauge (mm)

2260

HYDRAULIC SYSTEM OF WORK EQUIPMENT

Working pressure(Mpa)

20

Rated delivery(L/min)

264

Pump

Gear pump CB Zb4160T

Control valve

Hydraulic-operated plunger, loaded feedback, servo controlling

Valve position

Raise, Hold, Lower, Float

Cylinder, boreⅹrodⅹstroke(mm)

140ⅹ90ⅹ1440

WORK EQUIPMENT

Blade type

Straight tilt blade

Widthⅹlength(mm)

4314ⅹ1841

Max. lift above ground(mm)

1620

Max. drop below ground(mm)

749

Pitch adjustment (°)

52

Grade ability(°)

30

Max. tilt(mm)

1000

LengthⅹWidthⅹHeight(mm)

7458ⅹ4314ⅹ3898

Weight(kg)

39808
